Game Of Life Multiplatform

Conway's Game of Life implemented as a Kotlin Multiplatform project for desktop and Android. Developed as a university programming project exploring KMP's shared logic and platform-specific UI capabilities.

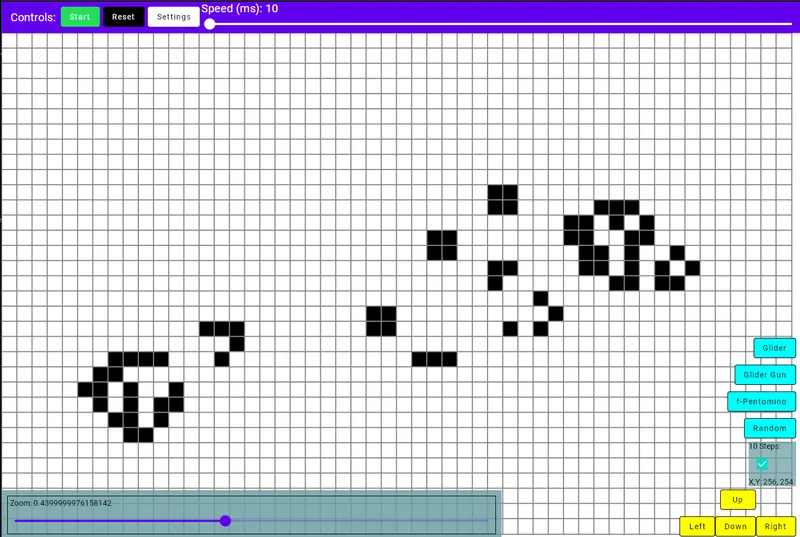

Game-of-Life-Multiplatform 1

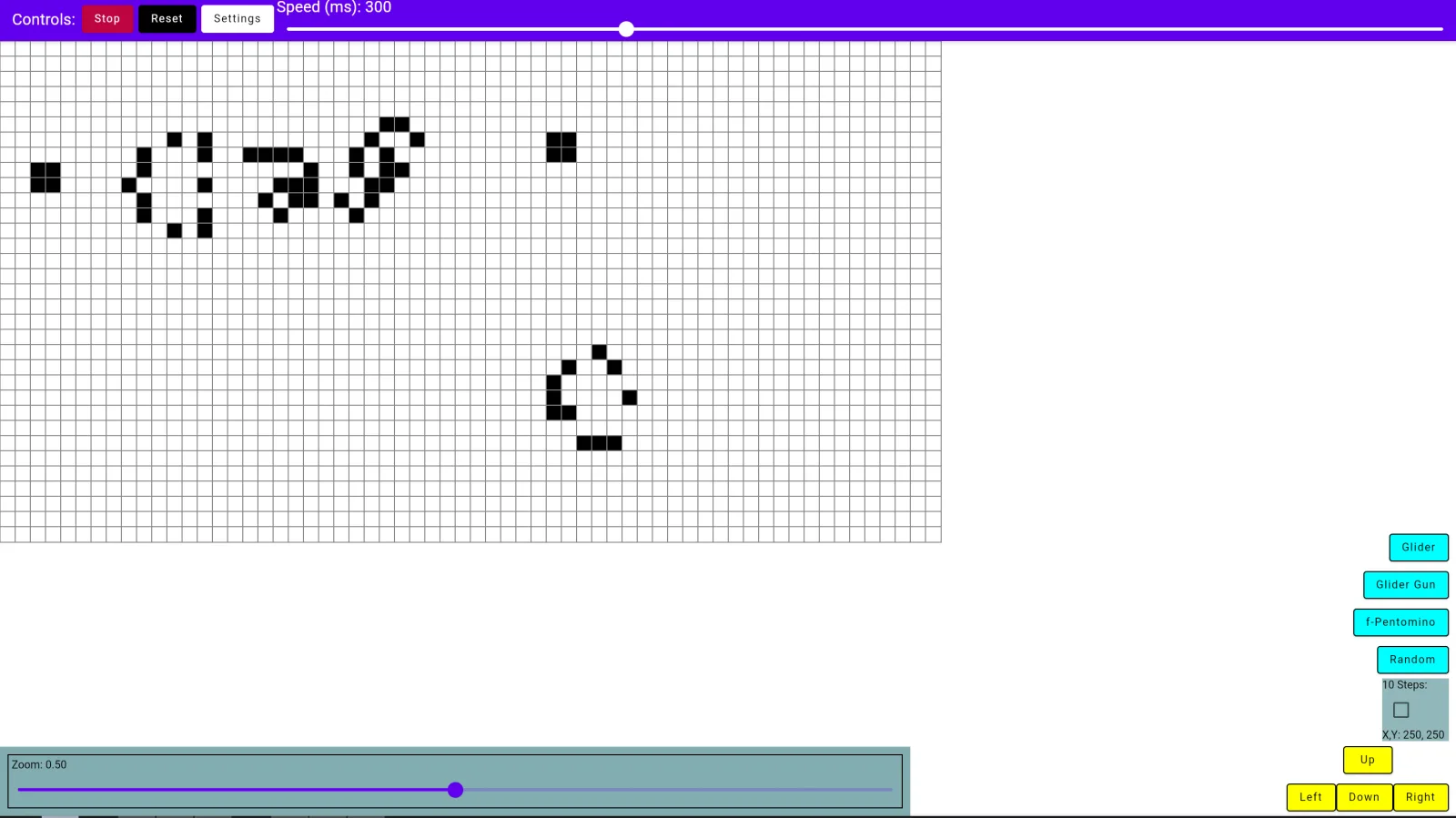

Game-of-Life-Multiplatform 2

A university programming-project implementation of Conway's Game of Life built with Kotlin Multiplatform, sharing the simulation logic — grid state, generation stepping, the cell ruleset — between a desktop build and an Android app rather than writing it twice. The project exists primarily to explore where KMP's shared-code boundary actually sits in practice: the cellular-automaton core is pure Kotlin with no platform dependencies, while rendering the grid and handling input are platform-specific UI layers on top, making it a small but concrete case study in what's worth sharing across targets and what isn't.

Architecture

graph TD
  Game["commonMain
Game.kt (pure Kotlin rules)"] --> Android["androidMain UI"]
  Game --> Desktop["desktopMain UI"]
  Timer["GameTimer"] -->|"onTick: step()"| Game
  Game -->|mutableStateOf per Cell| Android
  Game -->|mutableStateOf per Cell| Desktop

Under the hood

The cellular-automaton rules live once in commonMain and are shared verbatim by every platform target — only the rendering differs. Four rule variants (Conway 23/3, 3/3, 13/3, 34/3) are selectable at runtime.

composeApp/src/commonMain/kotlin/eu/mljr/Game.kt
Kotlin
when (rule) {
    0 -> { // Conway (23/3)
        if (p.isAlive() && (p.neighbors != 2 && p.neighbors != 3)) set(i, !c.state)
        else if (p.isDead() && p.neighbors == 3) set(i, !c.state)
    }
    1 -> { // 3/3
        if (p.isAlive() && p.neighbors != 3) set(i, !c.state)
        else if (p.isDead() && p.neighbors == 3) set(i, !c.state)
    }
    2 -> { // 13/3
        if (p.isAlive() && (p.neighbors != 1 && p.neighbors != 3)) set(i, !c.state)
        else if (p.isDead() && p.neighbors == 3) set(i, !c.state)
    }
    3 -> { // 34/3
        if (p.isAlive() && (p.neighbors != 4 && p.neighbors != 3)) set(i, !c.state)
        else if (p.isDead() && p.neighbors == 3) set(i, !c.state)
    }
    else -> throw IndexOutOfBoundsException("There exists no rule with index $rule")
}
