Face Auth

A Linux PAM module for facial recognition login using IR cameras and Windows Hello–compatible hardware. Features liveness anti-spoofing, an egui graphical configuration tool, and plugs into any PAM stack as a drop-in module.

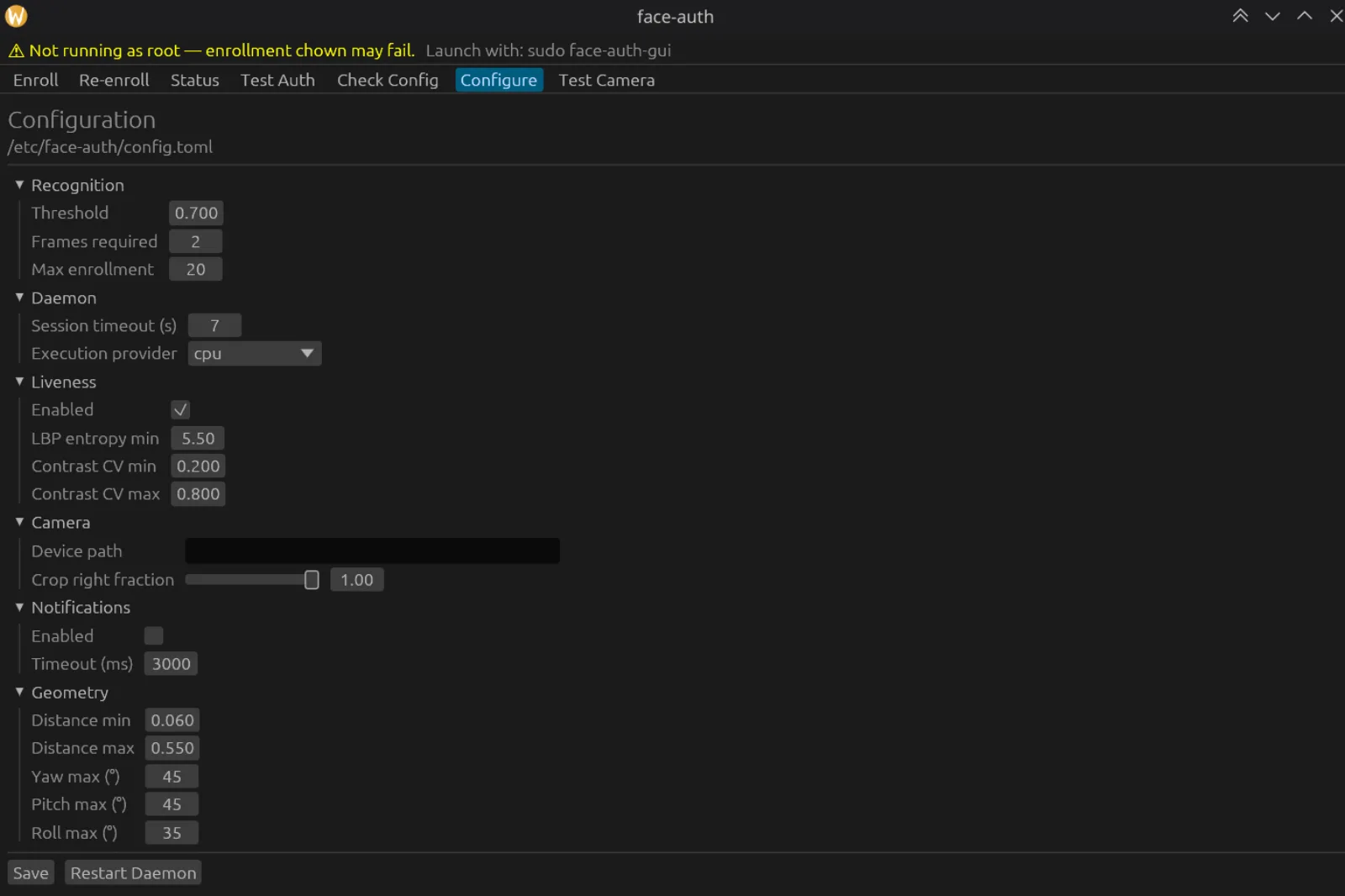

face-auth is a Linux PAM module written in Rust that authenticates logins using facial recognition, targeting IR cameras and Windows Hello–compatible infrared hardware so it isn't fooled by a printed photo or a phone screen the way plain RGB face-unlock can be. A liveness/anti-spoofing check runs before a match is accepted, and a separate egui-based graphical configuration tool handles enrolling faces and tuning thresholds without hand-editing config files. Because it's a standard PAM module, it drops into any PAM-aware stack — login, sudo, a display manager — alongside or instead of password auth, with the actual recognition and liveness logic implemented in Rust for memory safety in a process that runs with elevated authentication privileges.

Architecture

graph TD
  IR["IR camera frame"] --> SCRFD["SCRFD face detector"]
  SCRFD -->|BBox + 5-point landmarks| Geometry["analyze_geometry()
yaw/pitch/roll, distance ratio"]
  Geometry --> Metrics["FaceMetrics"]
  Metrics --> Classify["classify()
thresholds from GeometryConfig"]
  Classify -->|liveness/framing ok| StateMachine["StateMachine
Guidance -> Authenticating"]
  StateMachine -->|match| Embeddings[("enrolled embeddings")]
  Embeddings --> PAM["PAM module
accept / reject"]

Under the hood

Geometry checks turn raw 5-point landmarks into yaw/pitch/roll and a distance ratio, then a priority-ordered classifier decides what feedback to show — IR saturation and occluded eyes take precedence over framing issues.

crates/face-auth-core/src/geometry.rs

Rust

fn classify(m: &FaceMetrics, cfg: &GeometryConfig) -> FeedbackState {
    if m.ir_saturated {
        return FeedbackState::IRSaturated;
    }
    if !m.eyes_visible {
        return FeedbackState::EyesNotVisible;
    }
    if m.face_width_ratio < cfg.distance_min {
        return FeedbackState::TooFar;
    }
    if m.face_width_ratio > cfg.distance_max {
        return FeedbackState::TooClose;
    }
    if m.roll_deg.abs() > cfg.roll_max_deg {
        return FeedbackState::LookAtCamera;
    }
    if m.yaw_deg > cfg.yaw_max_deg {
        return FeedbackState::TurnLeft; // turned right → tell user to turn left
    }
    if m.yaw_deg < -cfg.yaw_max_deg {
        return FeedbackState::TurnRight; // turned left → tell user to turn right
    }
    if m.pitch_deg > cfg.pitch_max_deg {
        return FeedbackState::TiltUp;
    }
    if m.pitch_deg < -cfg.pitch_max_deg {
        return FeedbackState::TiltDown;
    }
    FeedbackState::Authenticating
}
